Lilmon 5: 5.5" HDR 4K HDMI Monitor | 1000nits On-Camera Field Monitor with Touchscreen, Waveform & Peaking Assist

$51.00

Original: $170.00

-70%

Lilmon 5: 5.5" HDR 4K HDMI Monitor | 1000nits On-Camera Field Monitor with Touchscreen, Waveform & Peaking Assist—

$170.00

$51.00

Original: $170.00

-70%

Lilmon 5: 5.5" HDR 4K HDMI Monitor | 1000nits On-Camera Field Monitor with Touchscreen, Waveform & Peaking Assist—

$170.00

$51.00

The Story

Description

Name: Lilmon 5: 5.5" HDR 4K HDMI Monitor | 1000nits On-Camera Field Monitor with Touchscreen, Waveform & Peaking Assist
Brand: OSEE
SKU: lilmon5-2
Availability: InStock

Video

Tech Specs

Hardware
Touch Display
Panel Size	5.5inch
Aspect Ratio	16:9
Resolution	1920x1080
PPI	400

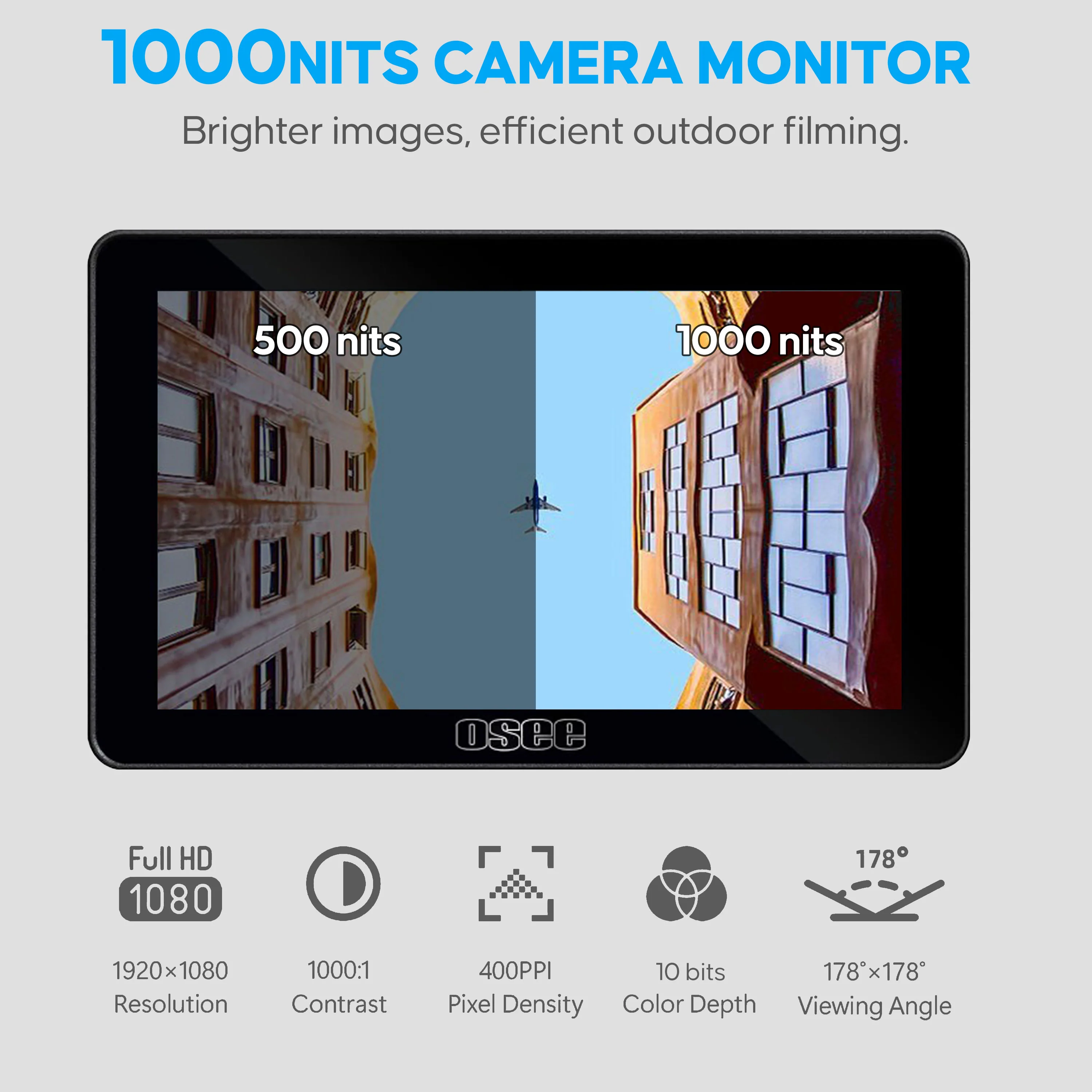

Brightness	1000nits
Contrast	1000:1
Color Depth	1.06G
Backlight	Edge lit
Viewing Angle	178x178
Environmental
Body	Polycarbonate (with aluminum plate built-in)
Weight&Dimension	Product Dimensions: 14.48.853.14 cm; Net Weight: 0.22 KG; Package (Box): 20185 cm; Gross Weight: 0.5 KG
Mounting Points	1/4”-20 anti-rotation screw mount, 1x bottom and 1x right
Operating Temp	0-40℃
Power
Battery Type	Sony NP-F
Battery In	6.2-16.8V
Battery Out	5.0-8.4V
Consumption	8.1W

Data I/O
Signal Input&Output	HDMI
Signal Format	4K: 4096 x2160p(30/29.97/25/24/23.98) UHD: 3840 x2160p(30/29.97/25/24/23.98) 2K: 2048x1080p(60/59.94/50/30/29.97/25/24/23.98) FHD: 1920x1080p(60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 720p(60/59.94/50) 480i/576i/480p/576p
SD Card Slot	User LUT Upload&Firmware Upgrade (FAT32 format and under 16G size needed)
Audio Jack	3.5mm
Remote Jack	2.5mm (for color calibration)

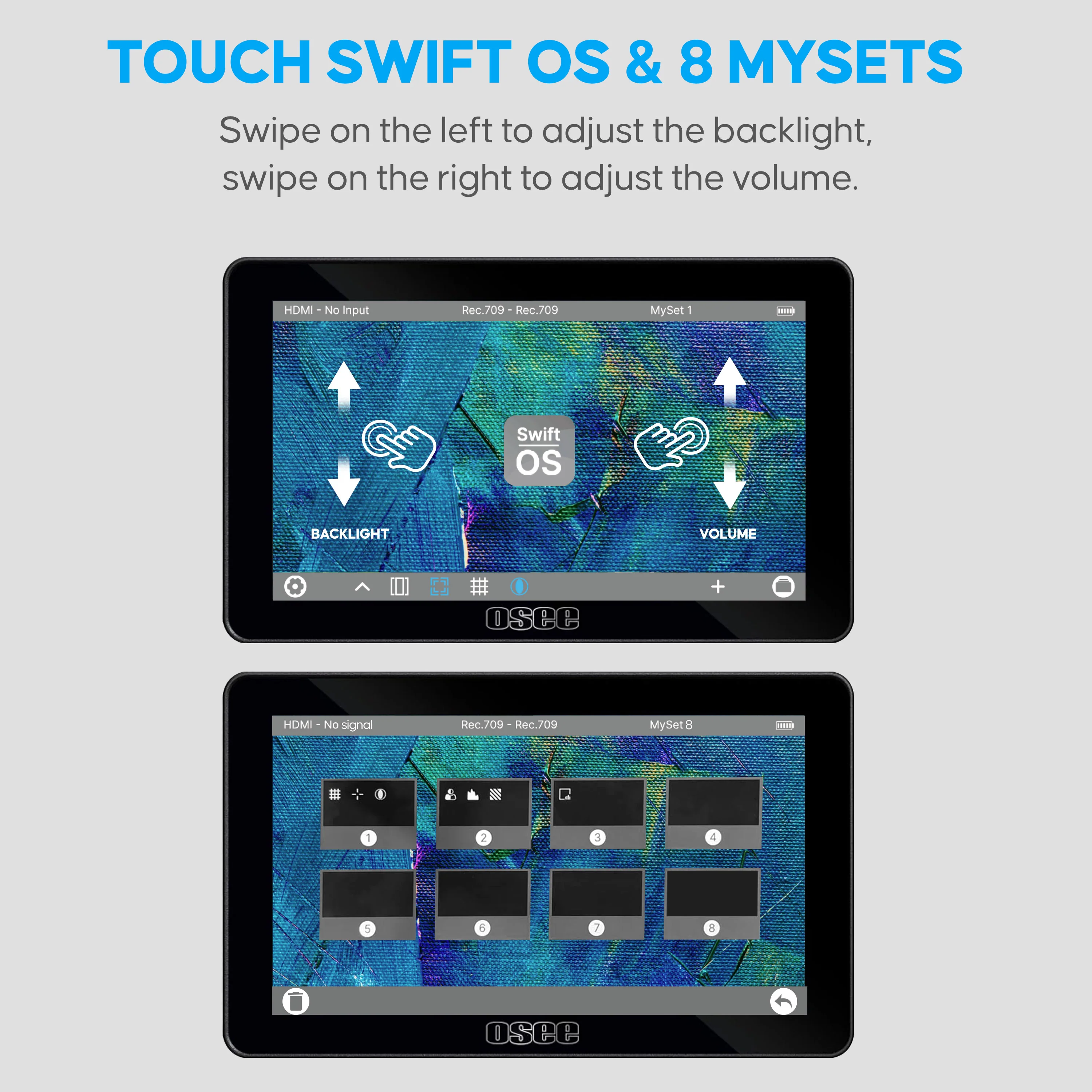

Touch Swift OS
Control
Backlight	Level 1-10
Volume	Level 0-31
Rotate/Mirror	Screen Rotate (0, 180, auto), Image Rotate (0, 180), Mirror
Probe Location	Set this to let exposure tools analyze before or after User LUT
Zoom	1x-4x (precision 0.1x)
Frame Tools
Aspect	9:16 (Phone), 4:5, 1:1, 4:3 (SD TV), 1.375:1 (Cinema), 16:9 (HD TV), 1.85:1 (Cinema), 2.37:1 (Cinema), custom(1:3 - 3:1)
Safe	Action&Title
Center	Cross/Hollow
Crosshatch	2x2, 3x3 ... 9x9
Anamorphic	1.33 x, 1.4 x, 1.5 x, 1.6 x, 1.8 x, 1.9 x, 2 x with magnify function
Exposure Tools

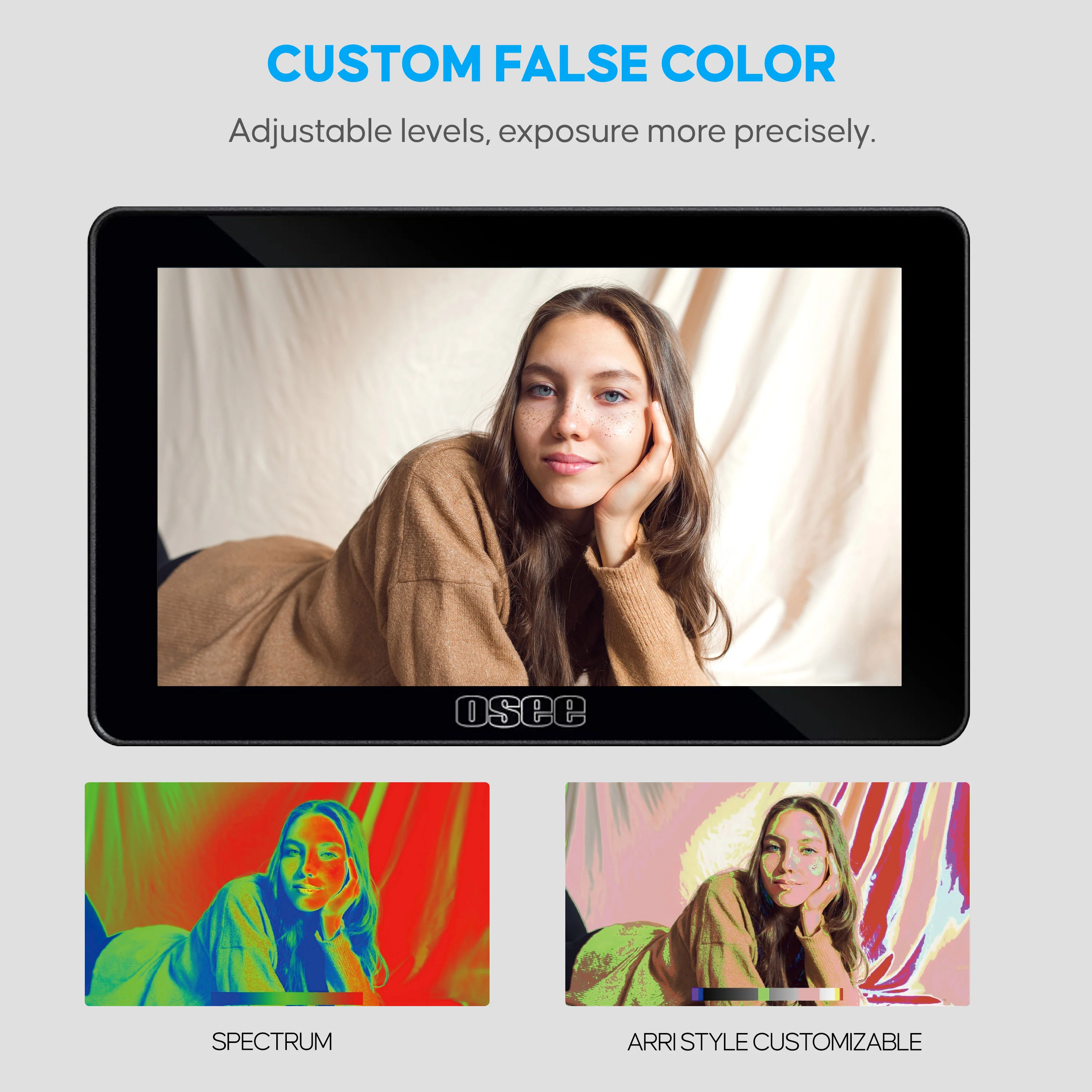

False Color	Spectrum/Follow camera/Custom
Zebra	Custom tone 1 and tone 2
Waveform	Luma/RGB/Parade style, size, location, opacity&density adjustable
Histogram	Luma/RGB style, location, opacity&density adjustable
Vector Scope	Location, opacity&gain adjustable
Focus Tools
Focus Assist	White, Red, Green, Blue，B&W background available
Peaking	Intensity 1-10
Look Tools
De-log	EBU Gamma: GAMMA 2.2/GAMMA 2.4/HLG/PQ Gamut: Rec709/Rec2100 DCI Gamma: GAMMA 2.6 Gamut: P3 D65/PCI-P3 Arri Gamma: El160/El200/El250/El320/El400/E500/El640/El800/El1000/El1280/El1600 Gamut: Rec.709/ALEXA Wide Gamut BMD Gamma: BMD Film/BMD 4K Film/BMD 4.6K Film Gamut: BMD 4K Film/BMD 4.6K Film/BMD Pocket 6K Film Canon Gamma: C LOG/C LOG2/C LOG3 Gamut: Rec.709/Canon Cinema/Rec 2100/DCI-P3/DCI-P3plus Fuji Gamma: F-LOG Gamut: Rec.709/F-Gamut Nikon Gamma: N-LOG Gamut: Rec2100 Panasonic Gamma: V-LOG Gamut: Rec.709/V-Gamut RED Gamma: Redlogfilm/Log3G12/Log3G10 Gamut: Rec.709/DRAGONcolor/DRAGONcolor2/REDcolor2/REDcolor3/REDcolor4/REDWideGamut Sony Gamma: S-LOG/S-LOG2/S-LOG3 Gamut: Rec.709/S-Gamut/S-Gamut3/S-Gamut3.Cine/Rec 2100

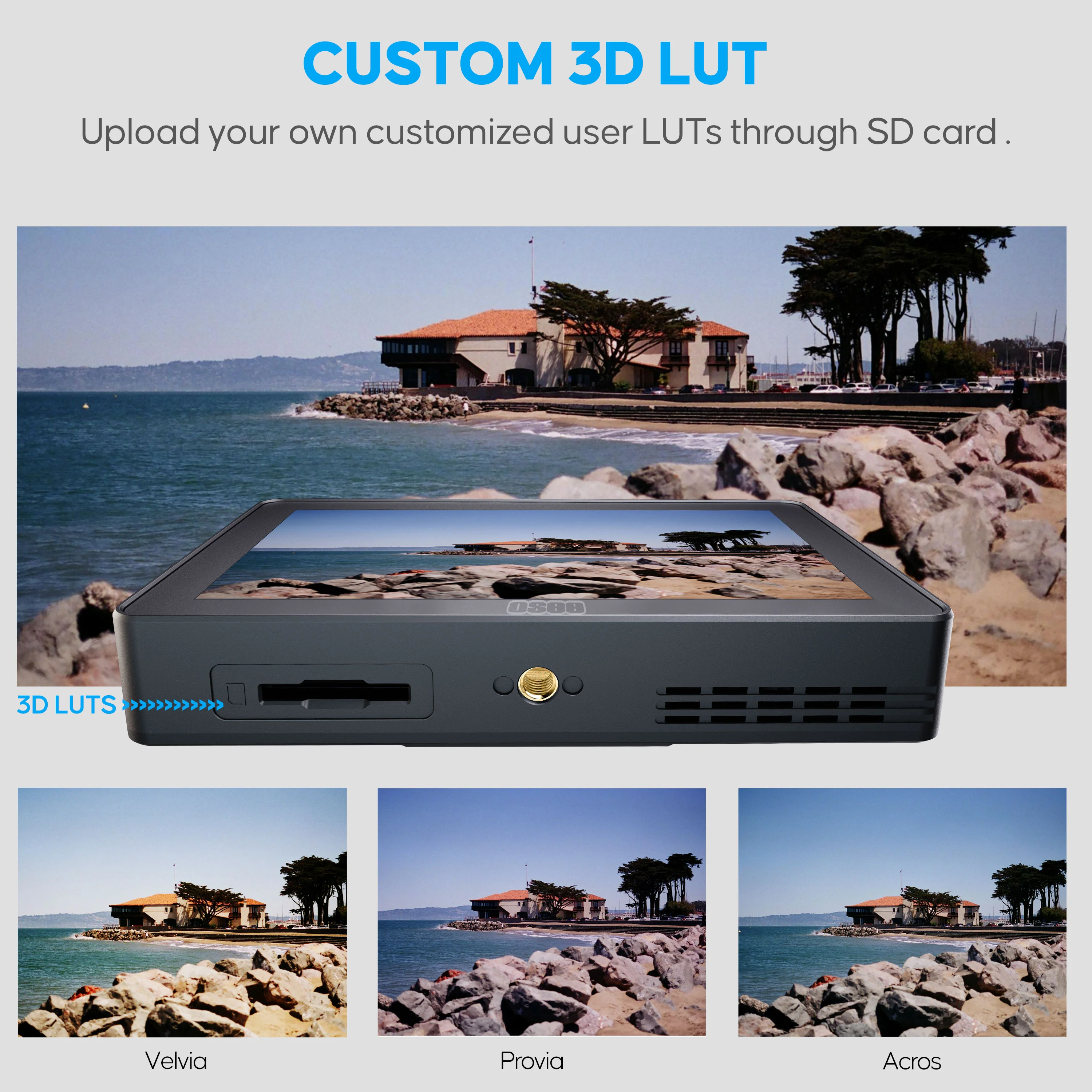

User LUT	Up to 10 User LUTs (2x2x2 to 65x65x65 3D LUTs) can be uploaded, support LUT intensity adjustment
Audio Tools
Audio Meter	Location&opacity adjustable
Analysis Tools
Multi-scopes	Waveform, histogram, vector scope and audio meter around scaled image

What's in the Box

The Standard Package Includes:

Lilmon 5 Monitor

Tilt Arm

Clean Cloth

QSG

Service Card

3 Replacement O-type Rings

2 DC Port Covers
